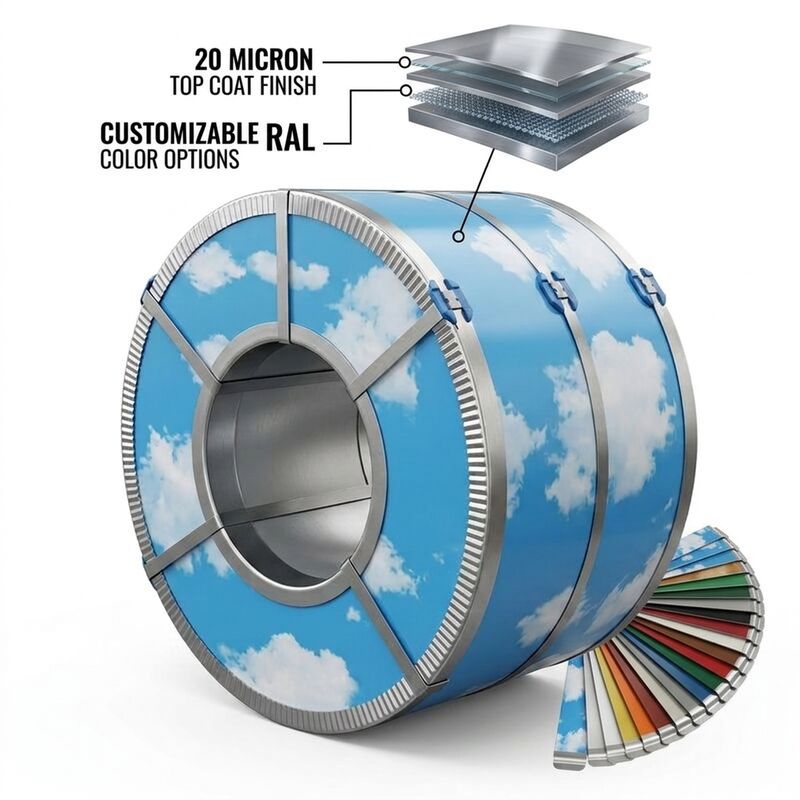

SMP Silicone Modified Polyester PPGI Steel Coil 0.3mm-1.2mm For Factory Workshop Warehouse Industrial Construction
  • SMP Silicone Modified Polyester PPGI Steel Coil 0.3mm-1.2mm For Factory Workshop Warehouse Industrial Construction
  • SMP Silicone Modified Polyester PPGI Steel Coil 0.3mm-1.2mm For Factory Workshop Warehouse Industrial Construction
  • SMP Silicone Modified Polyester PPGI Steel Coil 0.3mm-1.2mm For Factory Workshop Warehouse Industrial Construction

SMP Silicone Modified Polyester PPGI Steel Coil 0.3mm-1.2mm For Factory Workshop Warehouse Industrial Construction

Place of Origin Shandong, China
Brand Name ECER
Certification ISO 9001:2015, SGS, BV
Model Number PPGI-03
Product Details
Highlight:

SMP silicone coated steel coil

,

PPGI steel coil for construction

,

industrial color coated steel coil

Payment & Shipping Terms
Minimum Order Quantity
3 Tons
Price
550-850 USD/Ton
Packaging Details
Waterproof Paper + Metal Edge Protector + Steel Strapping + Wooden Pallet, Seaworthy Export Packaging
Delivery Time
15-25 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
5000 Tons per Month
Product Description

This SMP (Silicone Modified Polyester) coated PPGI steel coil is engineered for industrial building envelope applications where enhanced weather durability meets cost efficiency. Incorporating silicone resin into polyester chemistry achieves approximately 50% better gloss retention and chalk resistance compared to standard PE coatings, while remaining significantly more economical than PVDF systems. Applied in a two-coat configuration with corrosion-inhibiting primer and SMP topcoat, this product is the preferred specification for factory buildings, manufacturing workshops, and logistics warehouses.

Key Features
  • SMP Coating Technology: Silicone-modified polyester resin delivers 50% improved gloss retention and chalk resistance over standard PE, extending aesthetic service life by 3-5 years.
  • Industrial Atmosphere Resistance: Cross-linked SMP polymer matrix provides enhanced resistance to industrial pollutants, airborne particulates, and mild chemical exposure in manufacturing environments.
  • Higher Hardness Profile: SMP coatings exhibit pencil hardness of HB to F grade, providing better scratch and abrasion resistance during handling and installation.
  • Cost-Effective Performance: Delivers near-PVDF levels of weather resistance at approximately 40-50% lower coating cost for large-area industrial projects.
  • Wide Processing Window: SMP coating maintains formability for deep corrugation, trapezoidal sheets, and standing seam panels at typical industrial profiling parameters.
  • Thermal Stability: Silicone modification increases thermal resistance, reducing degradation risk in high-temperature environments such as foundries and steel mills.
Technical Specifications
ParameterSpecification
Substrate GradeDX51D+Z / DX52D+Z
Thickness Range0.30mm - 1.20mm
Width Range600mm - 1250mm
Zinc CoatingZ100 - Z275 g/m²
Top CoatingSMP 18-22 μm
Primer5-8 μm
Pencil HardnessHB - F
Service Life10-15 Years
Coil Weight3-8 tons
Applications

Industrial manufacturing plants, assembly workshops, logistics warehouses, cold storage facilities, agricultural processing buildings, mining infrastructure, power generation plants. Compatible with continuous roll forming lines producing corrugated sheets, trapezoidal profiles, standing seam panels, and insulated sandwich panel facings.

Packaging & Quality Assurance

Moisture-resistant VCI paper wrapping, hardened steel edge protectors, multiple steel banding straps, ISPM 15 fumigated pallets. Documentation per EN 10346 and EN 10169 including QUV-B 1000h and salt spray 500h certifications. ISO 9001:2015 quality management.
